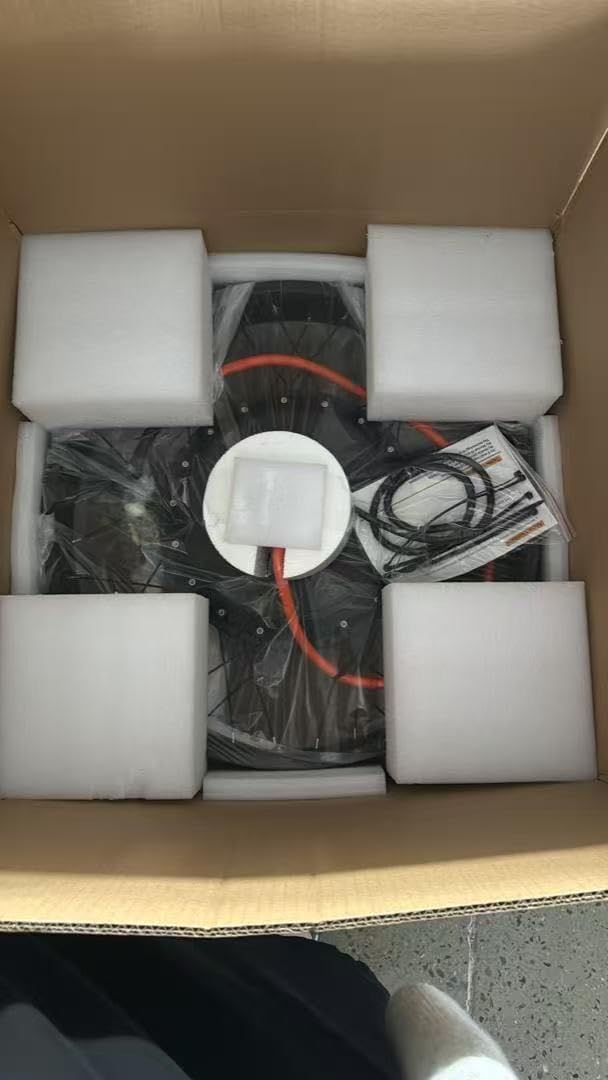

26inch 80mm Width Fat rim with QS 273 150mm dropout 8000W motorwheel with single freewheel (5T)

8000W 273 40H V3 E-spoke hub motor Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor Brand: QS Motor,QSMOTOR Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm Matching Rim size: 26*4.0 80mm Width rim Fat wheel. Magnet Height: 40mm, 16 pole pairs Stator: Aluminmum Core Rated Power: 4000W Rated Voltage: 72V as default Max Speed: 120KPH kV: 11.46/12.46/13.54/15.69/17.71etc. Max Torque: approx 250N.m Max Efficiency: 86-91% Continuous Battery Current:69A (72V) Peak Battery Current: 138A (72V) Suggest Peak Phase Current: 448-561A (depend on the kV) Thermic Probe: KTY83/122 (as default, optional) Working Temperature: 70-120℃ , peak 150 ℃ Brake type: Bike Disc brake, PCD6*44mm(as default) Drop-outs/Rear Fork Width for installation: 150mm Dual Hall Set with waterproof connectors 16mm ² ; Cross Section of Phase Wire (not include insulation layer) Hall Sensor Phasing angle: 120 degree Waterproof Grade: IP54 Color: Black N.W./G.W.: 18.2kg/20.0kg Package Dimension: 60cm*60cm*28cm/piece

• QS Motor,QSMOTOR;QS 273 8000W motor
• Drop-outs/Rear Fork Width for installation: 150mm
• Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
• 3.5T high Speed about 110-130km/h without load at 72V
• 5T high torque about 70-75km/h without load at 72V
